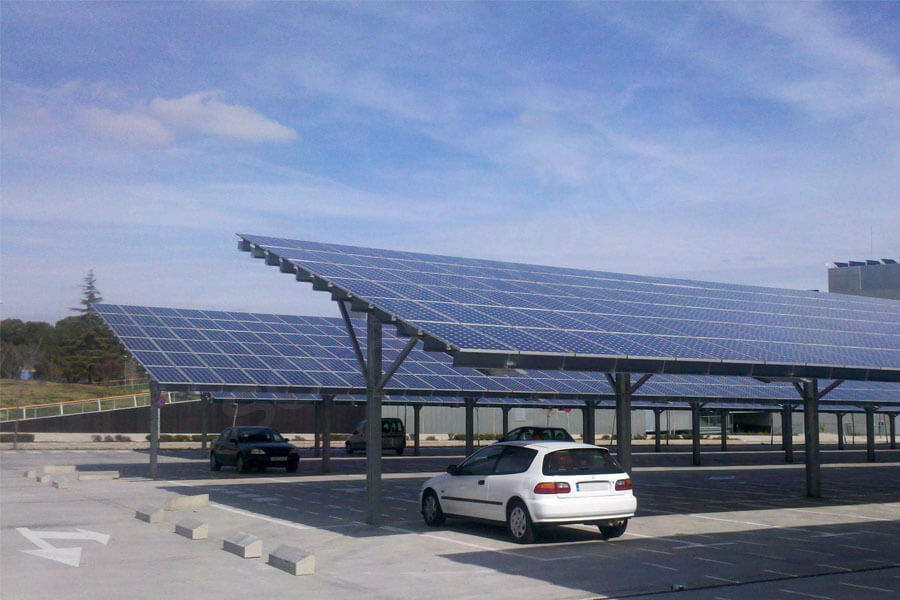

Photovoltaic+Car Shed “.

Photovoltaic car shed, as the name suggests, is “photovoltaic system+parking car shed.

The photovoltaic car shed can be combined with new energy electric vehicles and charging stations to achieve both parking and power generation.

Using photovoltaic modules located on the roof to generate electricity, it can be directly supplied to electric vehicles for charging or stored in batteries through charging devices, achieving spontaneous self use and surplus electricity connected to the grid.

Photovoltaic car sheds are particularly widely used in commercial areas, factory parks, highway service areas, parking lots, and other environmental applications.

Composition and Working Principle of Photovoltaic Car Shed

The photovoltaic car shed mainly consists of a bracket system, battery module array, lighting and control inverter system, charging device system, and lightning protection and grounding system.

The support system mainly includes support columns, inclined beams fixed between the support columns, purlins connected to the inclined beams for supporting the solar cell module array, and fasteners for fixing the battery module array.

Under each photovoltaic shed, there is a combiner box, and the solar panels at the top of the shed store the absorbed electricity through the combiner box, which is then transmitted to the inverter to convert direct current into alternating current. In addition to supplying power to new energy electric vehicles, photovoltaic sheds can also transmit excess electricity to the power grid.

Advantages of photovoltaic car sheds

Energy conservation and environmental protection

The photovoltaic car shed utilizes solar energy for power generation, which is emission free, noise free, and pollution-free. It uses green and clean energy, which is energy-saving and environmentally friendly, promoting carbon peaking and carbon neutrality.

Strong practicality

Photovoltaic car sheds not only provide a “shelter” for vehicles to prevent sunlight and rain, but also continuously provide electricity to charge new energy vehicles and provide electricity for enterprises.

Low cost

The construction cost is low, and compared to ordinary membrane structure car sheds, the entire project of photovoltaic car sheds, including steel structures and photovoltaic systems, only adds a small part of the cost per square meter.

The increased costs can also be recovered through electricity subsidies at the national, provincial, and municipal levels.

Long term benefits

The benefits brought by building a photovoltaic car shed are long-term benefits, and the system can continue to generate electricity for 25 years. After recouping the construction costs, the net benefits brought by the photovoltaic car shed can be enjoyed.

Flexible installation

The light storage and charging shed can be designed in different styles and sizes according to different site conditions and customer needs, adapting to various parking spaces with high flexibility.

Beautiful and elegant

Photovoltaic modules can serve as structural components of the shed, coordinating with the form and style of the shed, and increasing its aesthetic appeal.
