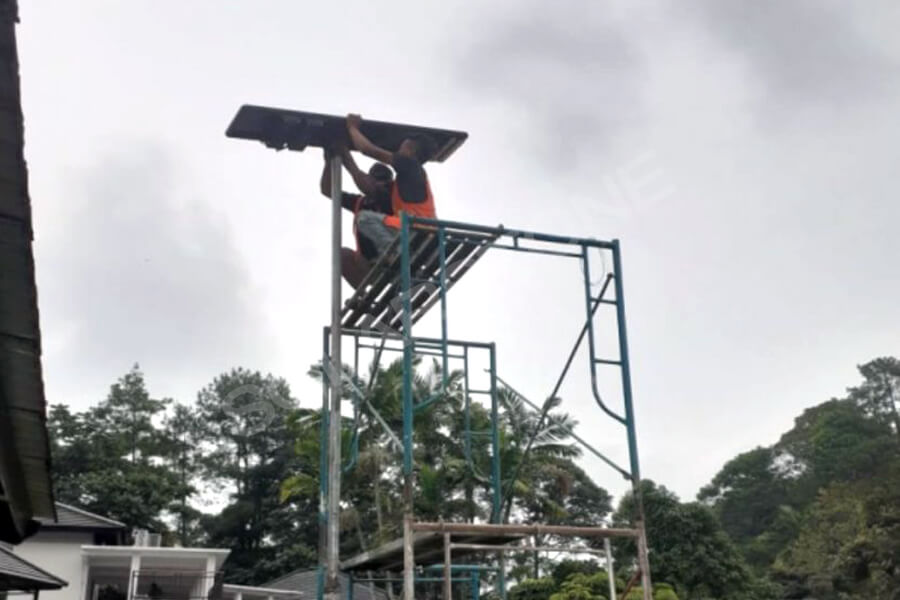

Solar panel installation
Put the solar panel flat first, so that the solar panel support can be placed flat on it. The solar panel shall be firmly fixed on the support with bolts, nuts and gaskets. When the solar panel is placed vertically, the junction box shall be located above. When the solar panel is placed horizontally, it shall be close to the direction close to the lamp pole assembly.
Precautions: avoid abrasion and scratch of solar panel surface during operation.

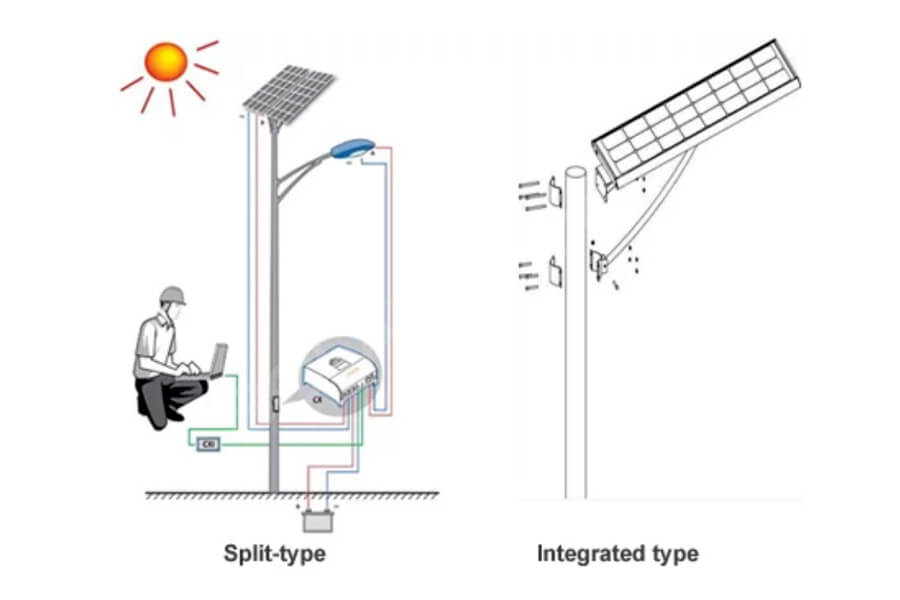

Solar panel wiring installation
Connect the red wire to the positive pole of the solar panel and the black wire to the negative pole of the solar panel, and then tighten the waterproof nut under the junction box.

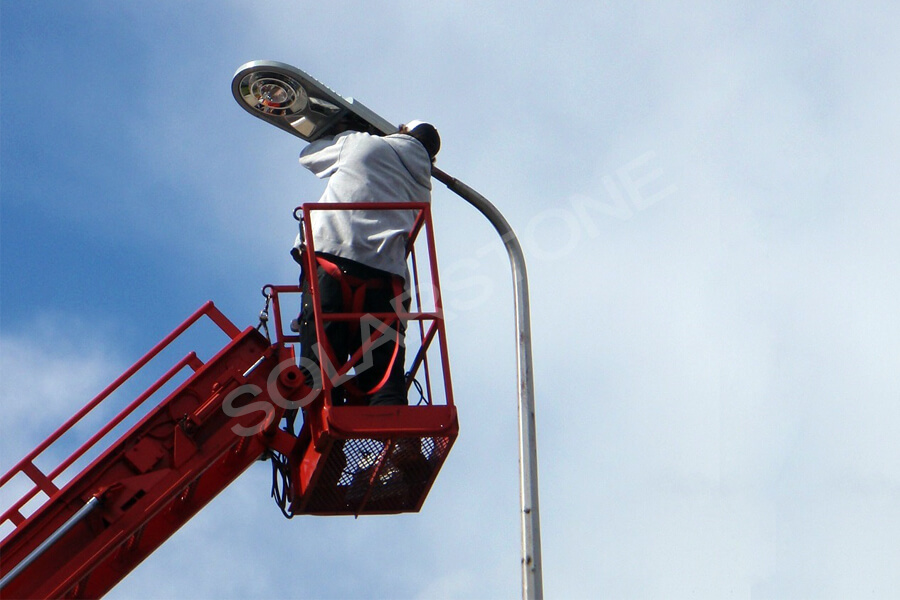

Installation of LED lamps
Pull with iron wire, thread the cable of the lamp from the cantilever into the lamp pole and out of the maintenance cabin. Install the lamp on the cantilever of the lamp pole, pre-tighten the bolts to ensure that the lamp is not biased, and tighten the bolts before installation.
Precautions: check whether the light source is normal before installation, so as to avoid unnecessary trouble caused by installation that may be damaged during transportation.
Solar panel bracket installation
Use steel wire rope to pull the cable into the lamp pole and out of the maintenance warehouse.
Fixed solar support
Fix the solar bracket on the lamp pole. When rotating the bracket to adjust the angle, ensure that the lamp faces the straight road and the solar panel faces south. Fix the bracket on the lamp pole with bolts.
Lifting lamp pole
Before lifting the chandelier pole, check whether the screws at each part are fixed firmly, whether the lamp cap is installed correctly, and whether the direction of the solar panel is correct, and connect the controller for simple debugging.
