Are you curious about the types of solar panels? This article will provide a detailed analysis of three main types: monocrystalline silicon, polycrystalline silicon, and thin-film solar panels. Understand the differences between them and find the one that best suits your new solar panel installation needs.

Solar panels mainly use two technologies: photovoltaic (PV) systems, which directly convert sunlight into electrical energy; And concentrated solar power (CSP), which collects sunlight through mirrors or lenses to generate heat and generate electricity.

Solar panels are mainly divided into three types: monocrystalline silicon, polycrystalline silicon, and thin-film solar panels, each of which varies in efficiency, cost, and application. Monocrystalline silicon panels have the highest efficiency but are also the most expensive, while thin-film solar panels have lower efficiency but are lighter and more flexible.

In recent years, significant progress has been made in solar panel technology, such as PERC panels, double-sided panels, and perovskite solar panels, which greatly improve efficiency and performance. Future trends also include quantum dot solar panels and hybrid solar panels.

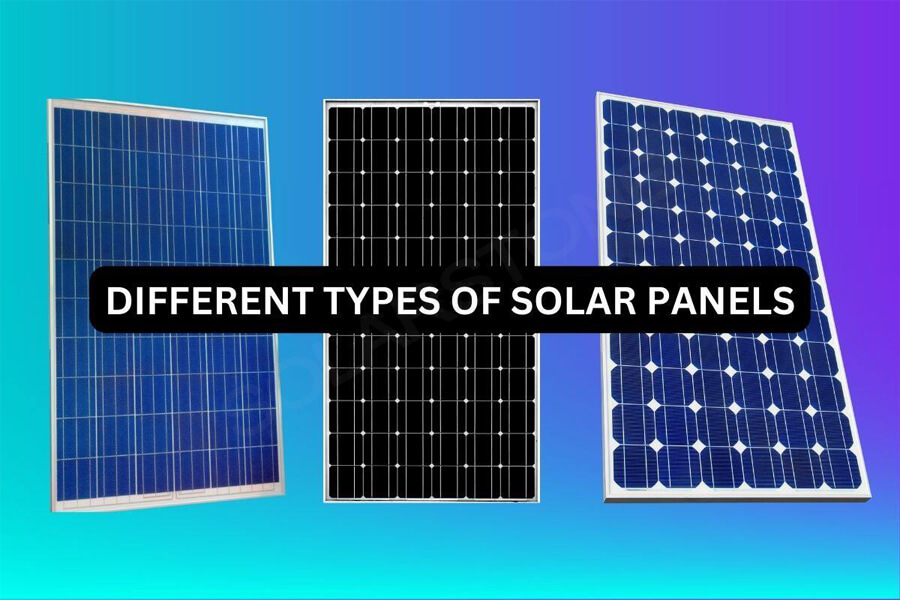

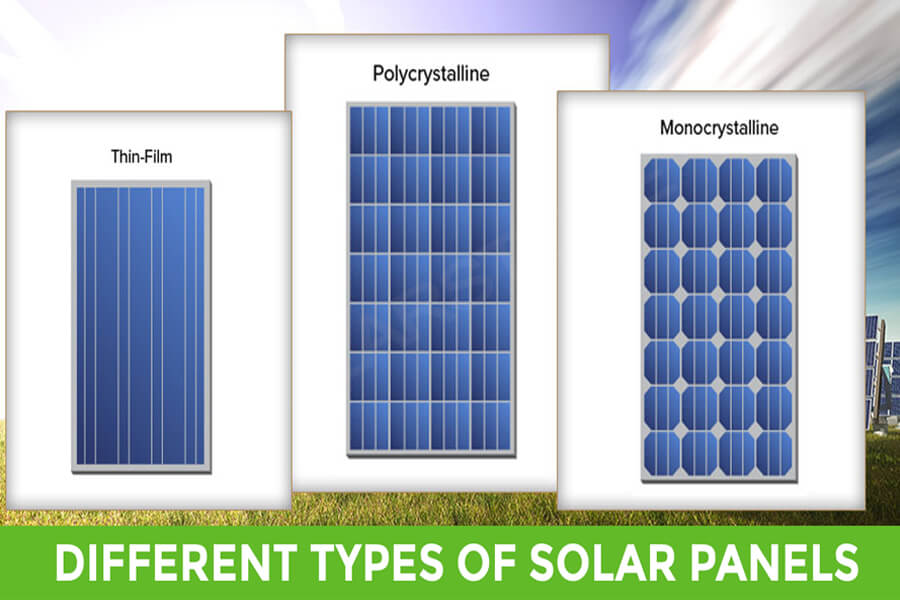

Different types of solar panels

Solar panels are a magical device that converts sunlight into electrical energy, based on solid scientific principles. Its core is solar cells, which are the basic units that make up all solar panels. By capturing and converting solar energy, these batteries generate renewable energy, reducing dependence on fossil fuels and lowering carbon emissions.

Solar panels mainly use two technologies: photovoltaic (PV) and concentrated solar power (CSP). Photovoltaic systems are the most common, which directly convert sunlight into electrical energy through solar cells; CSP uses mirrors or lenses to concentrate sunlight and generate heat, which in turn generates electricity.

Photovoltaic effect

The photovoltaic effect is the cornerstone of solar energy technology. When sunlight composed of tiny particles (photons) shines on the semiconductor material inside a solar cell, it excites the flow of electrons, thereby generating an electric current. This process is crucial in all types of solar panels, from monocrystalline silicon to thin-film solar panels without exception.

Silicon solar cells

Silicon solar cells are the most common type in the industry. These batteries are made of silicon, which is a rich semiconductor material that can effectively convert sunlight into electrical energy. The manufacturing process of monocrystalline silicon cells involves cutting silicon crystals into thin sheets, which is efficient but also costly.

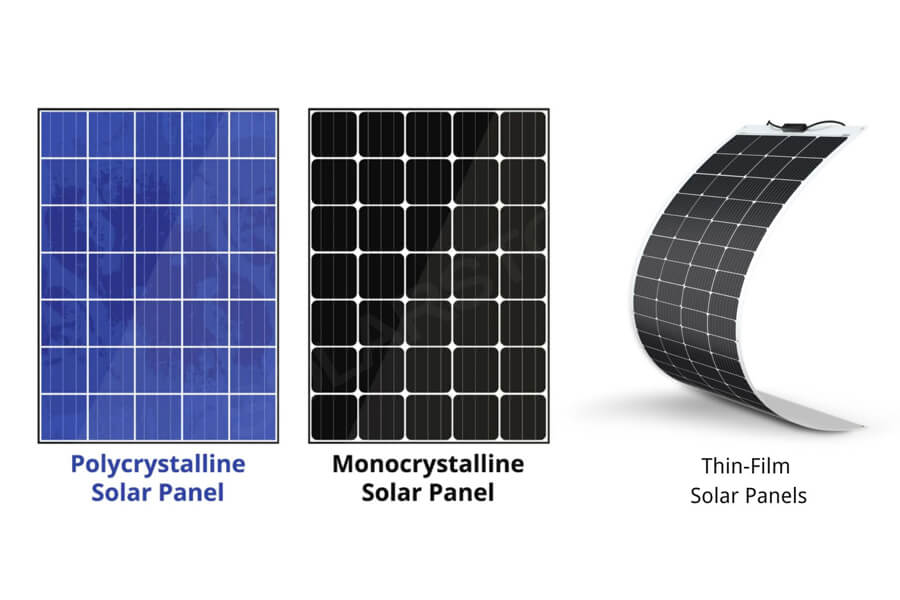

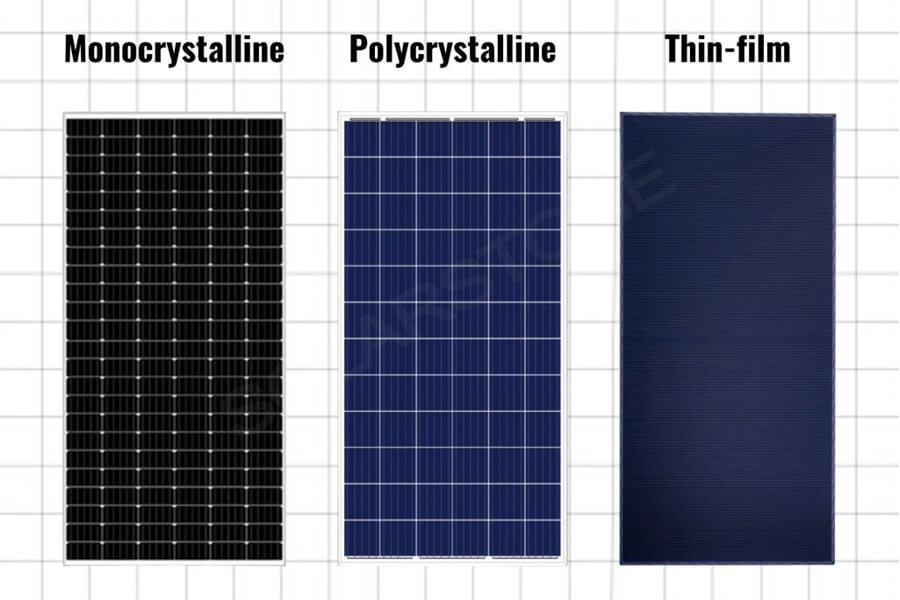

Solar panel type

Solar panels are mainly divided into three types, each with its unique characteristics and advantages.

1. Monocrystalline silicon solar panel: Made of monocrystalline silicon, it has a uniform and deep black appearance, high efficiency (18% to 24%), durability, and high space efficiency, but the cost is also high.

2. Polycrystalline silicon solar panel: Made by melting and recrystallizing silicon fragments, it has a blue appearance with spots, an efficiency of about 15%, low cost, and is environmentally friendly.

3. Thin film solar panels: Made by depositing a thin layer of photovoltaic material on a substrate, they are lightweight and flexible, suitable for situations with limited space or unique installation requirements, but have lower efficiency and durability.

Advanced solar panel technology

With the advancement of technology, various high-efficiency solar panels have emerged, such as PERC panels, double-sided panels, and perovskite solar panels.

PERC board: By adding a passivation layer to reduce electron recombination and improve efficiency, it is suitable for installations with limited space.

Double sided panel: It can capture sunlight from both sides, increase energy output, and is suitable for various environments.

Perovskite solar panels: have high efficiency potential (about 25%), but face challenges in long-term stability and scalability.

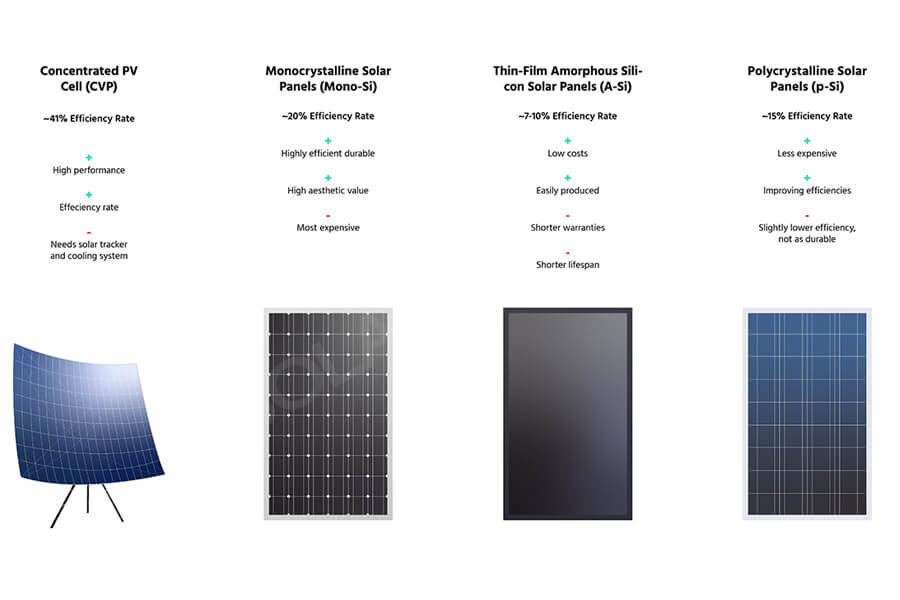

Compare solar panel types

When choosing solar panels, it is necessary to consider efficiency, cost, and durability comprehensively. Monocrystalline silicon panels have the highest efficiency but the highest cost, polycrystalline silicon panels have lower cost but slightly lower efficiency, and thin-film solar panels have the lowest cost but the worst efficiency and durability.

Choose the appropriate solar panel

Choosing solar panels requires consideration of efficiency, material quality, and installation conditions. Residential installations are suitable for choosing high-efficiency monocrystalline silicon panels, while commercial and industrial applications may prefer more cost-effective polycrystalline silicon panels or flexible thin-film solar panels.

Future Trends

The prospects of solar panel technology are broad, and new technologies such as quantum dot solar panels and hybrid solar panels are gradually moving towards commercialization. These new technologies are expected to further improve efficiency and performance, promoting the popularization of solar energy applications.

Frequently asked questions

What are the main types of solar panels?

Monocrystalline silicon, polycrystalline silicon, and thin-film solar panels.

What is photovoltaic effect?

The photovoltaic effect is the process by which solar cells convert sunlight into electrical energy.

How long can solar panels last?

Monocrystalline silicon panels typically last for 25 to 40 years, polycrystalline silicon panels for about 25 years, and thin-film solar panels for shorter periods.

What is PERC board?

PERC panel is an efficient solar panel that improves electron utilization efficiency by adding a passivation layer.

Is thin-film solar panel suitable for residential use?

Not recommended temporarily, as thin-film solar panels have lower efficiency and poorer durability.
